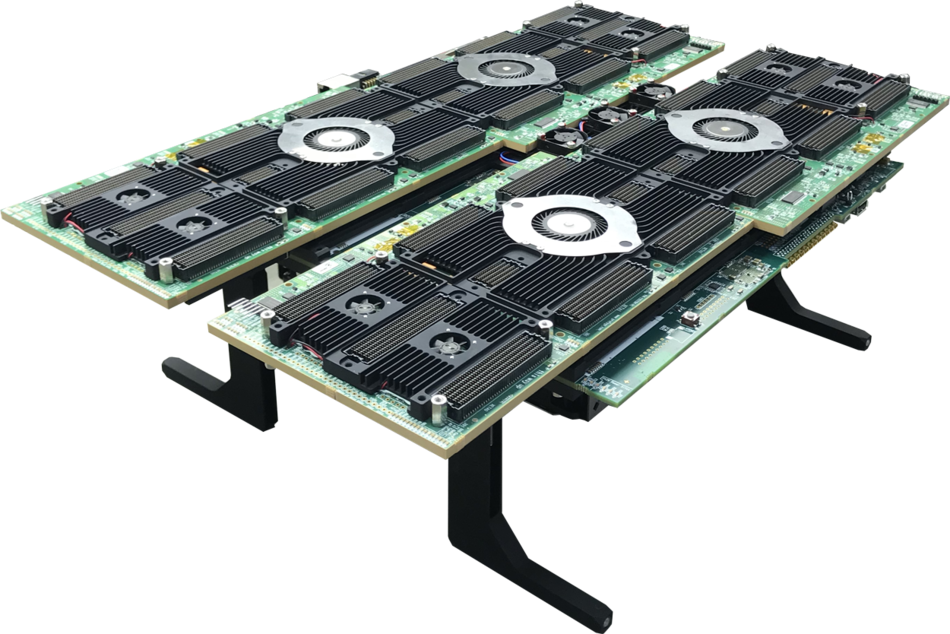

proFPGA quad Intel® Stratix® 10 GX 10M FPGA Prototyping System


Technical highlights fo FPGA Prototyping System

  • Scaleable up to 240 M ASIC gates capacity on one board
  • Modular with up to 4 x Intel® Stratix® 10 GX 10M FPGAs
  • Up to 8304 signals for I/O and inter FPGA connection
  • Up to 64 individually adjustable voltage regions
  • Up to 1.4 Gbps point to point speed

New Intel® Stratix® 10 GX 10M FPGA Prototyping System

Product Summary
The proFPGA quad 10 GX 10M system is a complete and modular multi FPGA Prototyping solution, which meets highest requirements in the area of FPGA based Prototyping. It addresses customers who need a scalable and flexible high speed ASIC Prototyping solution for early software development and real time system verification. The innovative system concept offers highest flexibility and reusability, reconfigurability for several projects, which guarantees the best return on invest.

Highest Flexibility
The system architecture is based on a modular and scalable system concept. The FPGAs are assembled on dedicated FPGA modules, which will be plugged on the proFPGA motherboard. This offers the highest flexibility to use for example different FPGA types in one system or to scale a system in increments of one FPGA. The user has nearly 100% access to all available I/Os of the FPGA, which gives him maximum freedom regarding the FPGA inter connection structure. This way the prototyping system can be adapted in the best way to any user design. Furthermore the system offers a total of 32 extension sites on the top and bottom site for standard proFPGA or user specific extension boards like DDR4 memory, PCIe gen1/2/3/4, Gigabit Ethernet, USB 3.0, QSFP+ or other high performance interface and interconnection boards.

Maximum Performance
The well designed boards of the proFPGA system are optimized and trimmed to guarantee best signal integrity and to achieve highest performance. The high speed boards together with specific high speed connectors allow a maximum point to point speed of up to 1.0 Gbps single ended over the standard FPGA I/O and up to 17.4 Gbps differential over the high speed serial transceivers of the FPGA. This performance combined with the high interconnection flexibility allows the designer to run his design at maximum speed in the proFPGA system.

Biggest Capacity
Equipped with up to four Intel® Stratix 10 GX 10M FPGA modules, the proFPGA quad system can handle up to 240 M ASIC gates on only one board. Due to the fact, that multiple proFPGA quad or duo systems can be connected to an even larger system, there is an unli- mited scalability and no theoretical maximum in capacity.

Very User Friendly
The proFPGA prototyping system provides an extensive set of features and tools, like remote system configuration, integrated self and performance test, automatic board detection, automatic I/O voltage programming, system scan and safety mechanism, which simplifies the usage of the FPGA based system tremendously.

Specification

FPGSs

  • Up to 4 x Intel® Stratix® 10 GX 10M FPGA Modules



Capacity

  • Up to 240 Million ASIC gates on one board (60 Million ASIC gates per FPGA Module)



FPGA-internal memory

  • Up to 1012 Mbit on one board (253 Mbits per FPGA Module)



Signaling rate

  • Up to 1.4 Gbps (standard I/O)/ up to 17.4 Gbps differential



Extension sites

  • Up to 64 extension sites with high speed connectors



I/O resources

  • Overall 8304 signals for I/O and inter FPGA connection
    • 2076 free I/Os per FPGA Module
      • 7 x 141 to top side connectors
      • 2 x 51 to top side connectors
      • 7 x 141 to bottom side connectors
  • Single-ended or differential



High Speed I/O transceivers

  • 192 dedicated high speed serial transceivers running up to 17.4 Gbps
    • 48 high speed serial transceivers per FPGA Module



FPGAs interconnections

  • Flexible via high-speed interconnection boards or cables



Voltage regions

  • 64 individually adjustable I/O voltage regions
    • 16 individually adjustable voltage regions per FPGA Module
    • Stepless from 1.2 up 1.8V
  • Automated detection of daughter card and adjustment of right voltage



Configuration

  • With host software via Ethernet, USB 2.0, PCIe or standalone over USB stick or JTAG



Clocking

  • 336 differential external clock inputs
    • 84 differential clock inputs per FPGA Module
    • 6 differential clock inputs per connector
  • Run-time configurable local clocks
  • 6 global clock and sync signal inputs per motherboard
  • X fully synchronous derived clocks with sync signals



Data exchange

  • On board DMBI (Device Message Box Interface)
  • Data exchange rate:
  • Ethernet (up to 100 Mbps)
  • USB (480 Mbps)
  • PCIe (up to 3.5 Gbps)



Power

  • External (optional) ATX Power Supply (12 V, 24 - 35 A output)



Dimensions

  • 11.81" x 0.95" x 12.20" / 300 mm x 24 mm x 310 mm (width x height x depth)
  • 2.5 kg weight

System Architecture



Configurations

proFPGA quad Intel® Stratix® 10 GX 10M FPGA Prototyping System Configurations
 proFPGA quad 10 GX 10M FM1proFPGA quad 10 GX 10M FM2proFPGA quad 10 GX 10M FM3proFPGA quad 10 GX 10M FM4
Extension Sites16324864
FPGA Modules1234
FPGATypeIntel® Stratix® 10 GX 10MIntel® Stratix® 10 GX 10MIntel® Stratix® 10 GX 10MIntel® Stratix® 10 GX 10M
Logic Capacity (ASIC Gates)60M120M180M240M
FPGA Memory253 Mbit506 Mbit759 Mbit1012 Mbit
I/O Resources2076415262288304
High Speed I/O Transceivers4896144192
Adjustable Voltage Regions16324864
Interconnectionsflexibleflexibleflexibleflexible
Clock Inputs84 + 6168 + 6252 + 6336 + 6
Global Clocks8/x-derived8/x-derived8/x-derived8/x-derived
Order CodePROF-QUAD-10GX10M-FM1PROF-QUAD-10GX10M-FM2PROF-QUAD-10GX10M-FM3PROF-QUAD-10GX10M-FM4



Technologies

FPGA Mixing Technology (FMT)

  • Easy plugging and unplugging of FPGA modules on motherboard
  • Various FPGAs from different vendors can be used
  • Automatic scanning and detection of FPGA modules, when plugged
  • Different FPGA configurations are handled and controlled by profpga Messenger



Smart Stacking Technology (SST)

  • Automatic Board detection when boards are plugged
  • Automatic and right I/O voltage setting and programming with conflict detection
  • Integrated interconnection self and performance test
  • Smart I/O resource management. No I/O resources get lost or get blocked by connectors




Device Message Box Interface (DMBI)

  • High speed, low latency data exchange system
  • Enables various use modes like remote system configuration and monitoring and debugging
  • Up to 3.5 Gbps data transfer rate
  • Runs over USB, Ethernet or PCIe




Advanced Clock Management (ACM)

  • The proFPGA system uses an innovative dual-stage clock generator architecture. Each proFPGA motherboard is capable of distributing up to 8 true asynchronous master beats. Each master beat may be used to derive a virtually unlimited number of clock domains inside the FPGAs. With the unique proFPGA synchronization scheme, clock domains and associated reset signals can be generated fully phase-synchronous over all FPGAs on the motherboard and over multiple motherboards. s.
